Rudder Mounting Gudgeon
Sea-Lect Designs Universal Rudder Mounting Gudgeon (SKU: K748270-1) The Sea-Lect Designs K748270-1 is a universal 304 stainless steel rudder bracket for kayaks with flat sterns or pre-tapped inserts. Fits standard 3/8" pins and major brands like Wilderness Systems, Ocean Kayak, and Necky. Features a 6-hole mounting pattern for maximum compatibility. Height: 2.75". SKU: K748270-1. Made in the USA.
SeaLect Designs Rudder Mounting Gudgeon – Universal Bracket (SKU: K748270-1)
Upgrade Your Kayak’s Steering with a Professional Universal Mount
The Sea-Lect Designs Rudder Mounting Gudgeon (SKU: K748270-1) is the heavy-duty, stainless steel solution for mounting a rudder system to your kayak’s stern. This "Universal Bracket" is specifically engineered to provide a rock-solid attachment point for the high-performance Trucourse™ Rudder, but it is also compatible with most rudder housings that use a 3/8" long-pin design.
Crafted from stamped 304 stainless steel, this gudgeon is built to thrive in harsh saltwater environments without rusting or failing. Whether you are rigging a new fishing kayak or replacing a plastic factory bracket, the K748270-1 offers the precision and durability needed for smooth, responsive steering.
FULL SPECIFICATIONS & Item Details
This bracket features a multi-hole pattern designed to align perfectly with the factory-installed threaded inserts found on many popular kayak brands.
Specification Detail
Model Name Rudder Mounting Gudgeon (Universal Bracket)
SKU K748270-1
UPC 656566010207
Material Stamped 304 Stainless Steel
Rudder Pin Fit Standard 3/8" (10mm) Rudder Pins

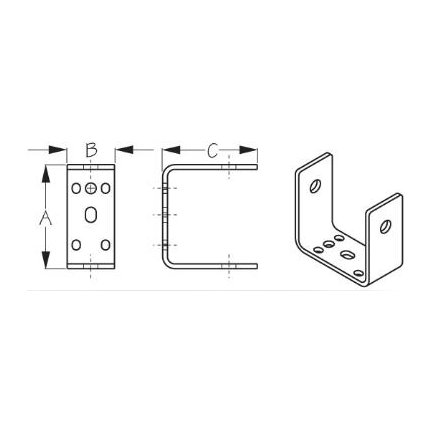

Height (A) 2-3/4" (approx. 70 mm)
Width (B) 1-1/4" (approx. 32 mm)
Length/Depth (C) 2-1/2" (approx. 64 mm)
Weight 0.30 lbs (0.13 kg)
Mounting Holes 6 Total Holes (Multi-pattern for universal fit)
Country of Origin Made in the USA
Warranty Limited 1-Year Warranty
Key Advantages & Compatibility
• Universal Multi-Fit Pattern: The 6-hole design includes patterns that match Wilderness Systems (3/4" on center), Ocean Kayak, and Necky (13/16" horizontal x 1-1/2" vertical on center), as well as Emotion and Old Town models.
• Marine-Grade Durability: Made from premium 304 stainless steel, providing superior strength-to-weight ratio and excellent corrosion resistance for lifetime use.
• Precision Steering Support: Designed to eliminate "slop" or play in your rudder system, ensuring your steering inputs are translated directly to the water for better tracking and maneuverability.
• Easy Installation: Optimized for kayaks with pre-tapped mounting holes or flat sterns. Simply bolt on using your kayak's existing hardware or compatible stainless steel screws (hardware varies by kayak model).
Get your kayak tracking straight. Order the Sea-Lect Designs Universal Rudder Mounting Gudgeon (SKU: K748270-1) today!
