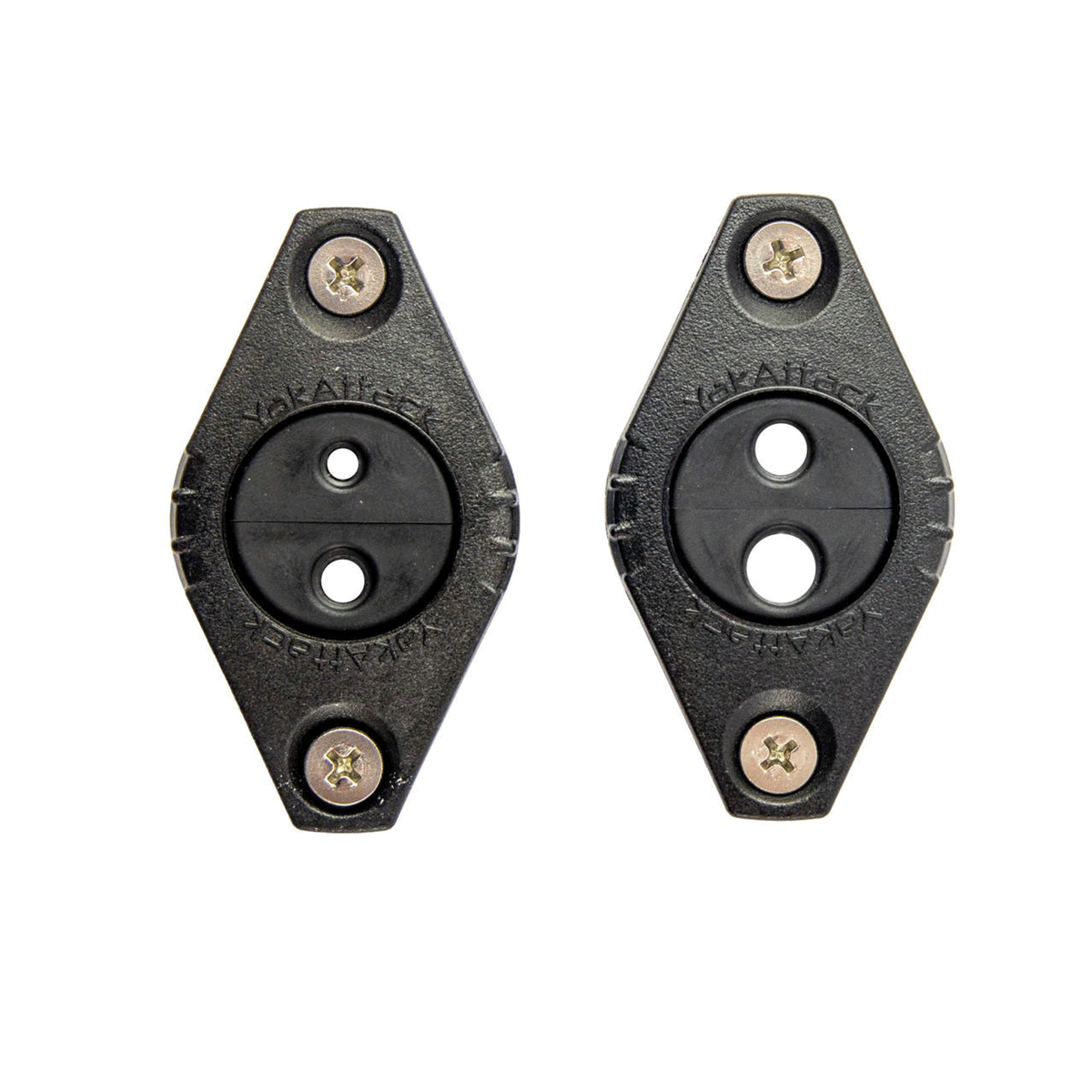

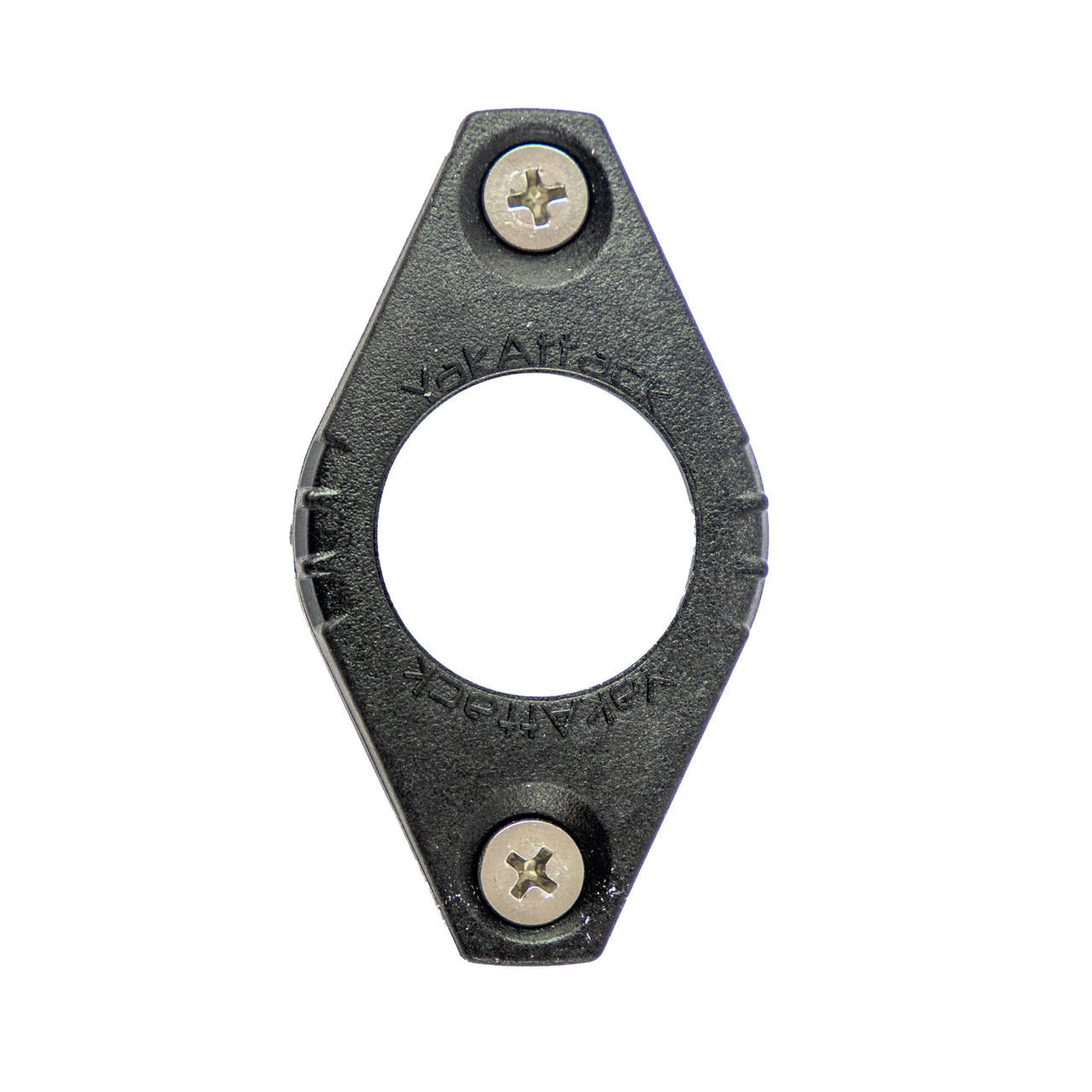

YakAttack GridLoc Through Hull Wiring Kit (SKU: EMS-1003)

The Ultimate Professional Solution for Clean Kayak Electronics Installation

The YakAttack GridLoc™ Through Hull Wiring Kit (SKU: EMS-1003) is the gold standard for routing fish finder cables, transducer wires, and power leads through your kayak’s hull. Gone are the days of messy wires and unreliable seals. This kit provides a clean, professional finish while ensuring a water-resistant seal to keep your interior hatches dry.

Built on the versatile GridLoc™ platform, this kit includes a variety of rubber inserts to accommodate different wire diameters—from thin power cables to thick, multi-pin transducer connectors. Whether you are rigging a top-of-the-line side-imaging sonar or a simple GPS unit, the GridLoc Through Hull Wiring Kit is the essential hardware for a factory-quality install.

FULL SPECIFICATIONS & Item Details

Specification Detail

Model Name GridLoc™ Through Hull Wiring Kit

SKU EMS-1003

UPC 819731015692

Insert Variety Includes 7 different rubber grommets for various cable sizes.

Cable Compatibility Fits everything from small power wires to large 1" transducer plugs.

Mounting Style Through-hull (requires drilling a 1" hole).

Hardware Included Stainless steel mounting screws and GridLoc backing plate.

Material UV-Stabilized, High-Quality Polymer and Marine-Grade Rubber.

Approx. Dimensions **Diameter: 2.25"

Item Weight 0.2 lbs (3.2 oz)

Made In USA

Warranty Covered by YakAttack's Built for Life Guarantee.

GridLoc™ Wiring Kit Key Advantages

• Customizable Fit: The kit comes with a comprehensive set of inserts with various hole counts and sizes, ensuring you have the perfect fit for a single wire or multiple cables in one port.

• Water-Resistant Protection: The compression-fit rubber grommets wrap tightly around your cables, significantly reducing water intrusion during rain, spray, or wash-overs.

• GridLoc™ Technology: The included backing plate provides a rock-solid foundation, ensuring the fitting won't pull through or loosen over time, even with heavy-duty transducer cables.

• Aesthetic & Professional: Replaces unsightly "goop" or electrical tape solutions with a sleek, low-profile black housing that complements the look of any modern fishing kayak.

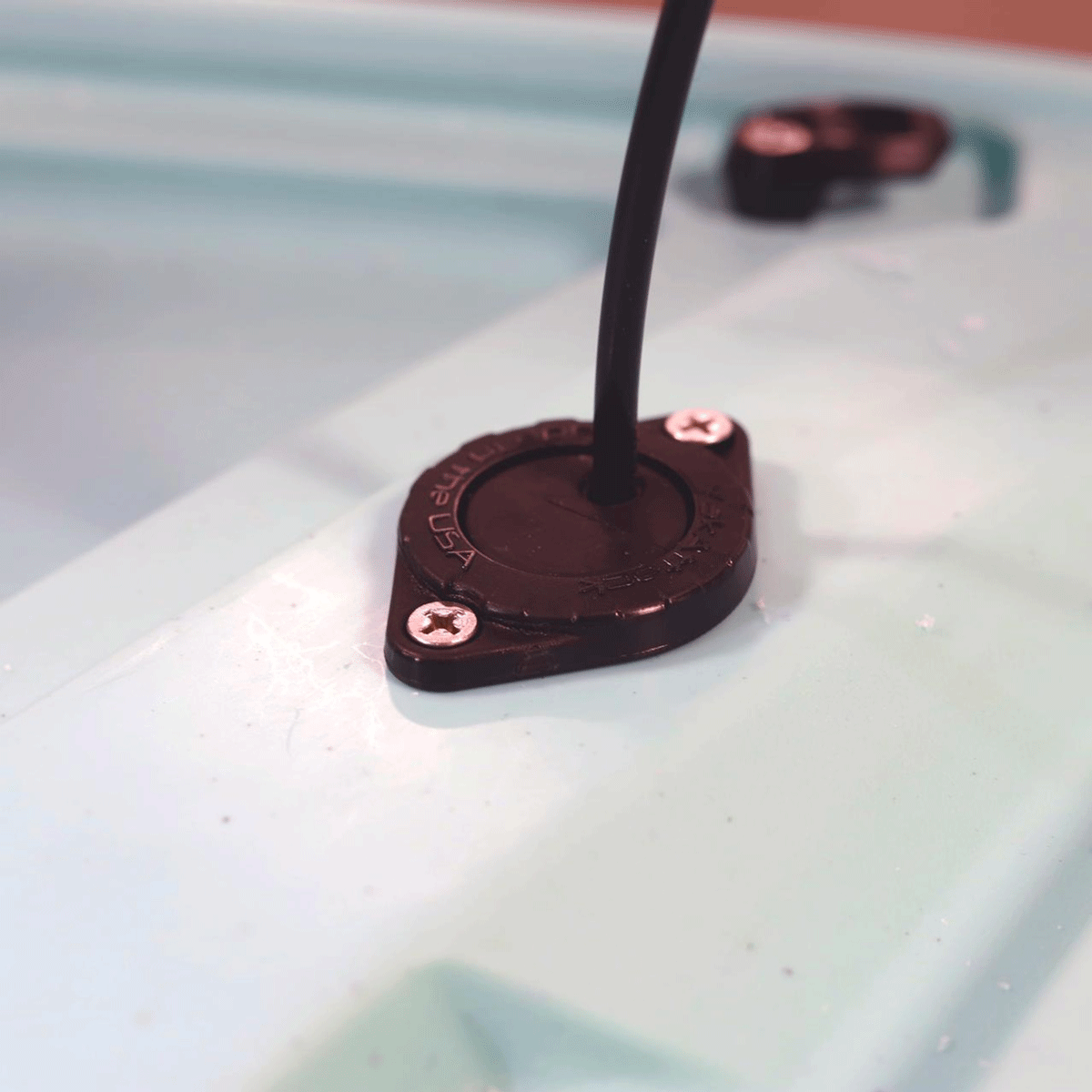

• Universal Application: While designed for kayaks, this kit is perfect for any marine application (boats, SUPs, or small watercraft) requiring through-hull wire routing.

Installation Tip:

This kit requires a 1" hole saw for installation. The installation does not require access to the backside of the install area.

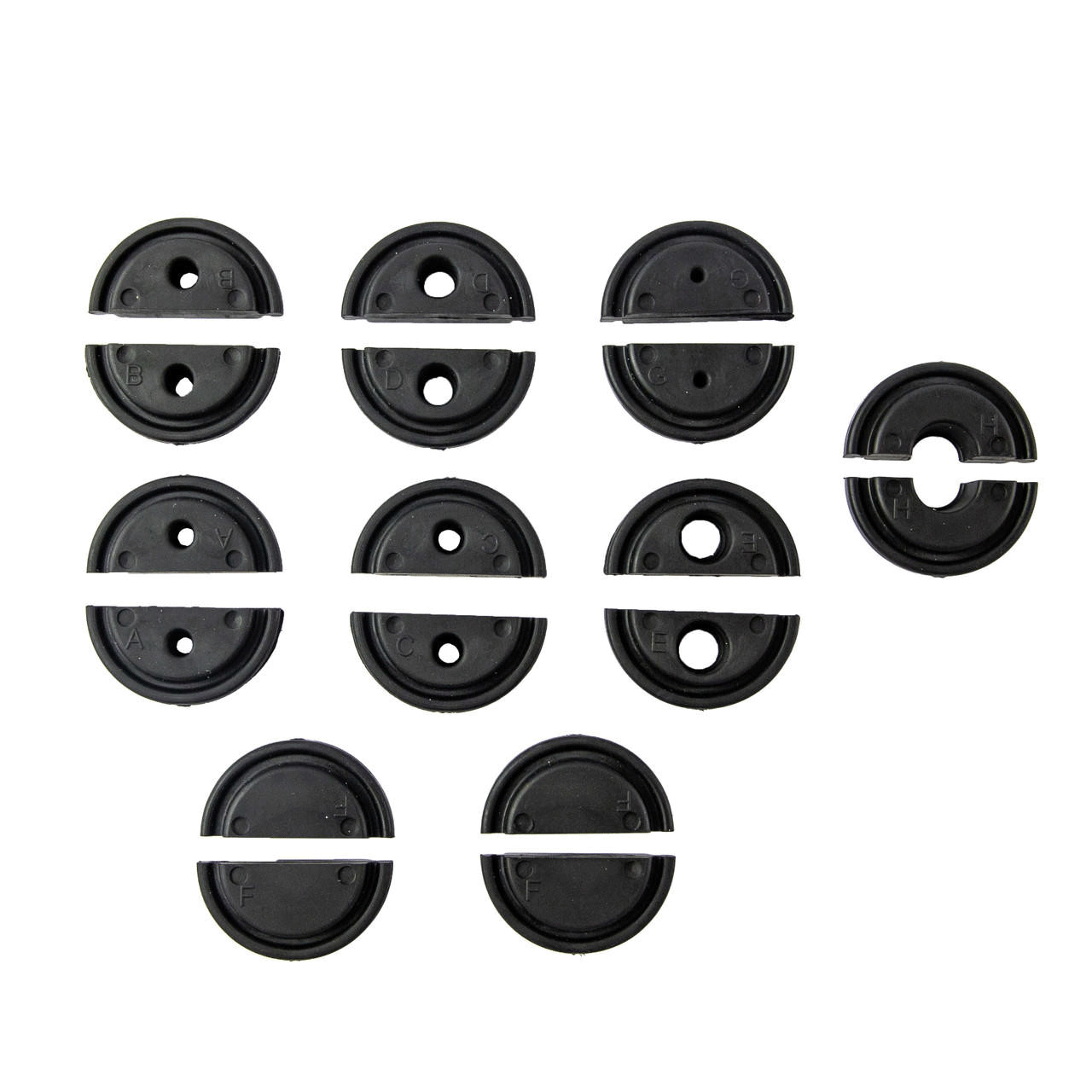

Hole Diameter Sizes:

A - 0.166" x 2 units

B - 0.191" x 2 units

C - 0.205" x 2 units

D - 0.265" x 2 units

E - 0.345" x 2 units

F – Blank x 4 units

G - 0.08” x 2 units

H - 0.389” x 1 unit (two halves)

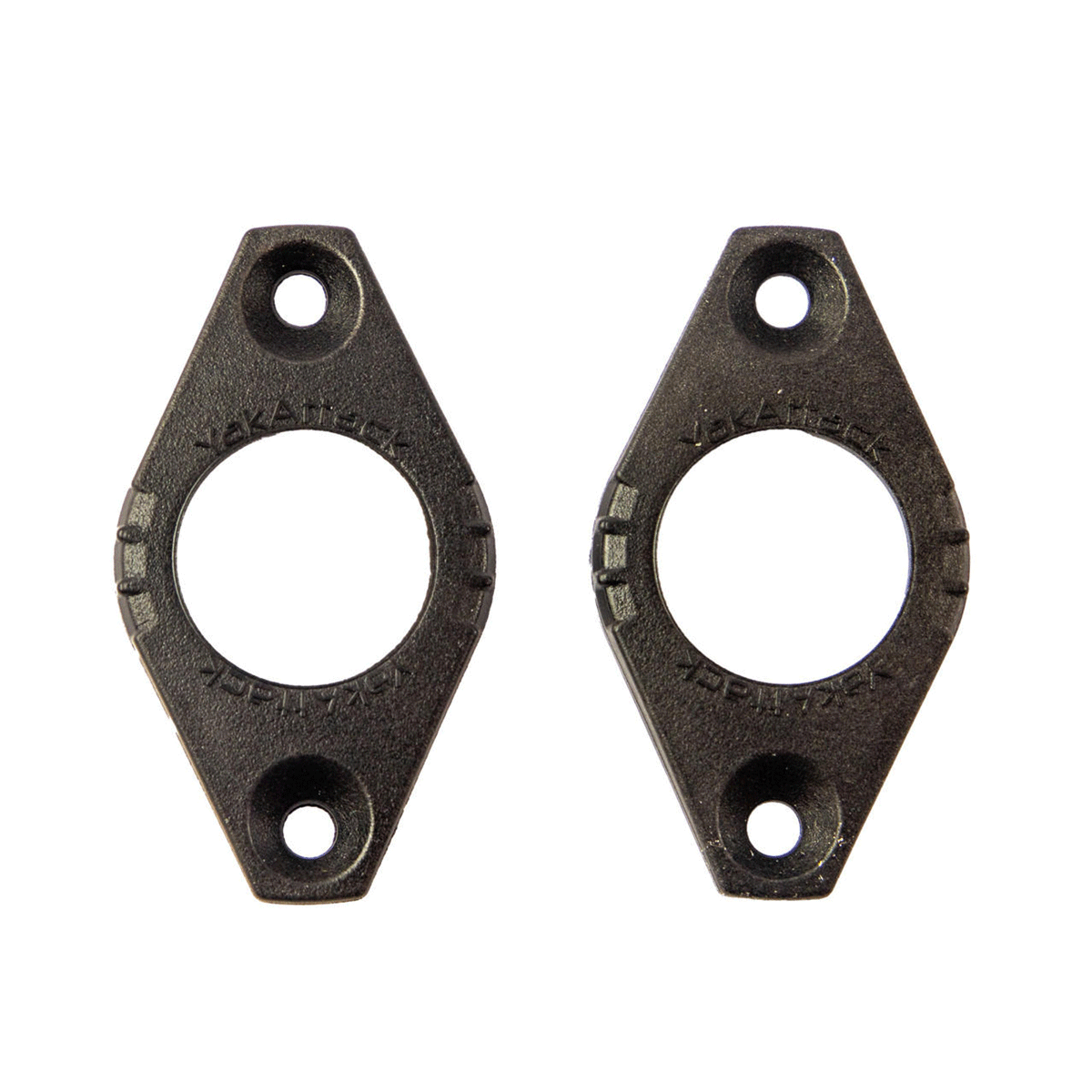

• 2 x grommets

• 14 x rubber inserts with common hole sizes

• Hole sizing ranges from 0.08” to 0.389” in diameter

• 4 x blank rubber inserts

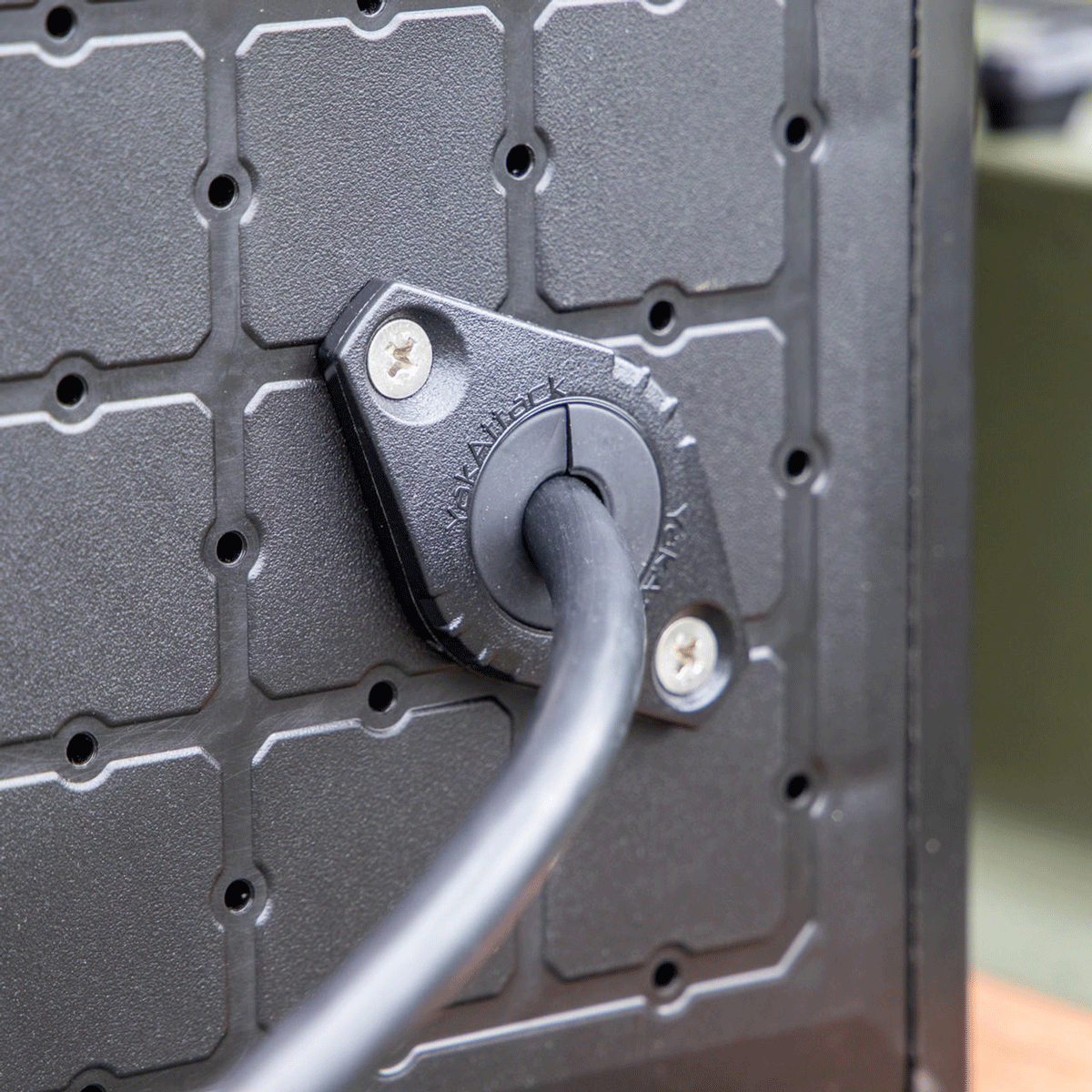

• Compatible with the hole pattern on the BlackPak Pro

• Grommet dimensions: 2.75" x 1.5"

• Requires 1” hole

• Made in the USA

• Covered by our Built for Life Guarantee

• SKU: EMS-1003

• UPC: 819731015142

Don't settle for a messy deck. Achieve a professional, secure electronics setup with the YakAttack GridLoc™ Through Hull Wiring Kit (SKU: EMS-1003) today!
